Shenyang Sumboy Imaging Technology Co., Ltd., founded in January 2016, is a high-tech enterprise integrating design, manufacturing, and sales. We specialize in UAV drone gimbal products embedded with AI tracking and targeting functionalities, tailored for seamless integration with all types of drones and FPV systems.

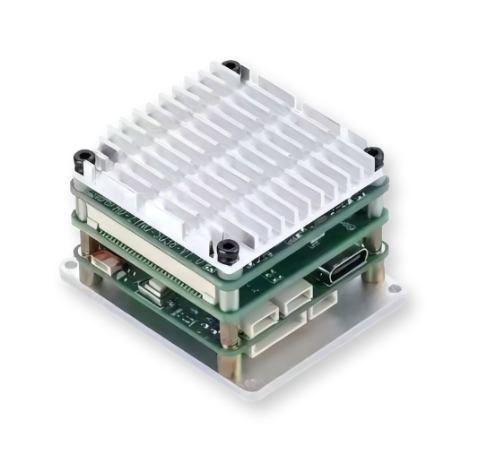

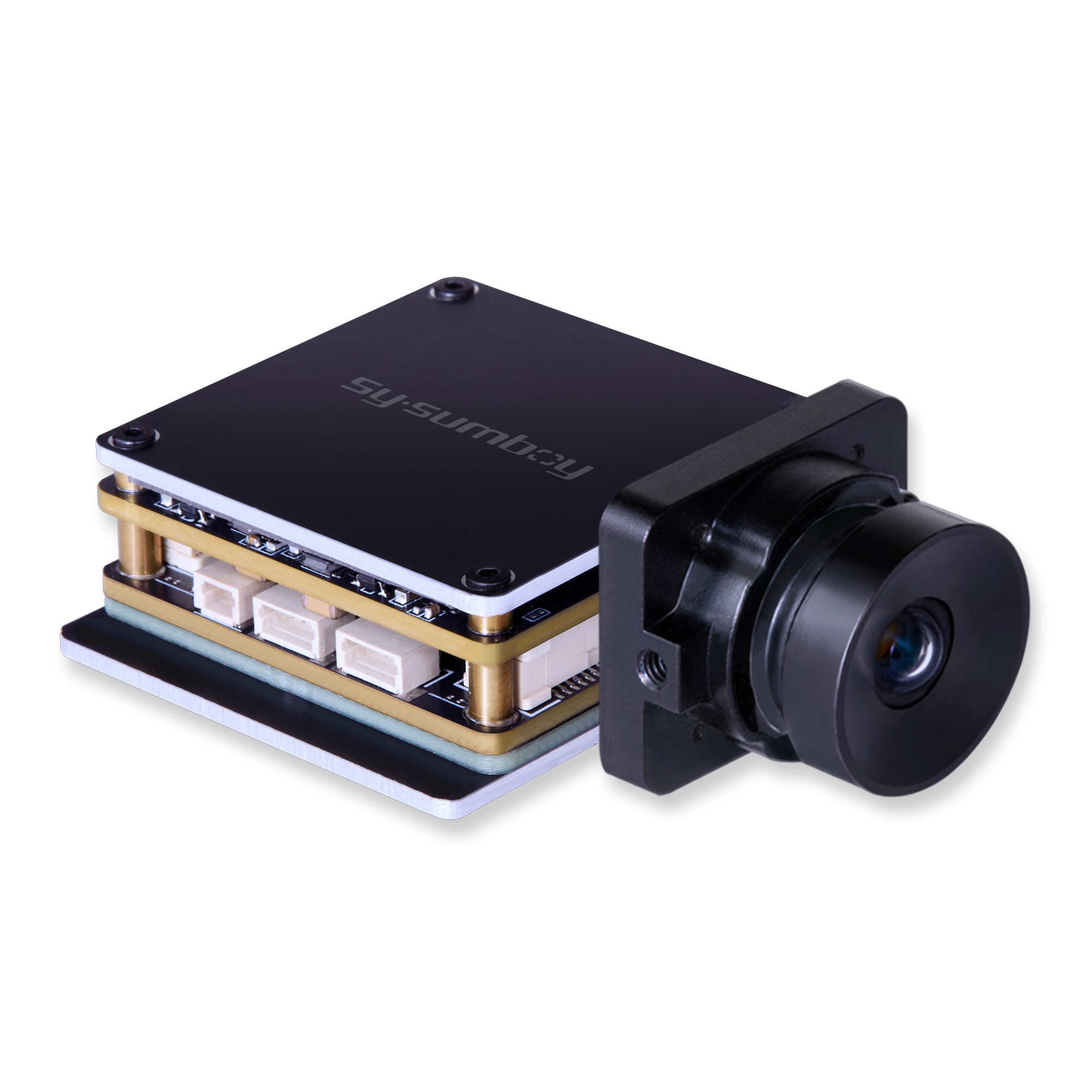

Accurately lock and tracking Voltage: 9-12 V Video input and output: PAL Latency: 0 ms Frame rate: 50HZ Size: 38mm*38mm*13mm(16mm with heat sink) Weight: 28g Working temp.: -30℃~65℃ Resolution:720*288 Min. target pixel: 16*16-128*128 pixels Tracking speed: ±32 pixels FOV: 36°x 29°

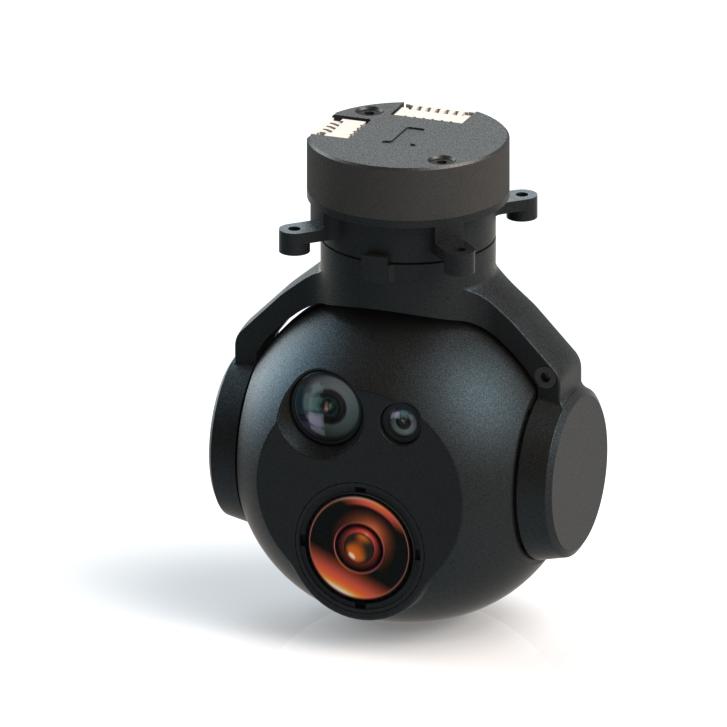

Platform type： Two-axial Pitch：-110°～+110° Roll： -100°～+40 Weight：85g Electro-Optic（large） Resolution：1920×1080@60fps FOV： 82°×52° (3.2mm) Electro-Optic（small） Resolution： 1920×1080@60fps FOV： 19.7°×11° (16mm) Thermal IR Resolution：640×512@50fps FOV： 32.9°×26.6° (13mm) Control interface： serial port Video output：network(Rtsp)

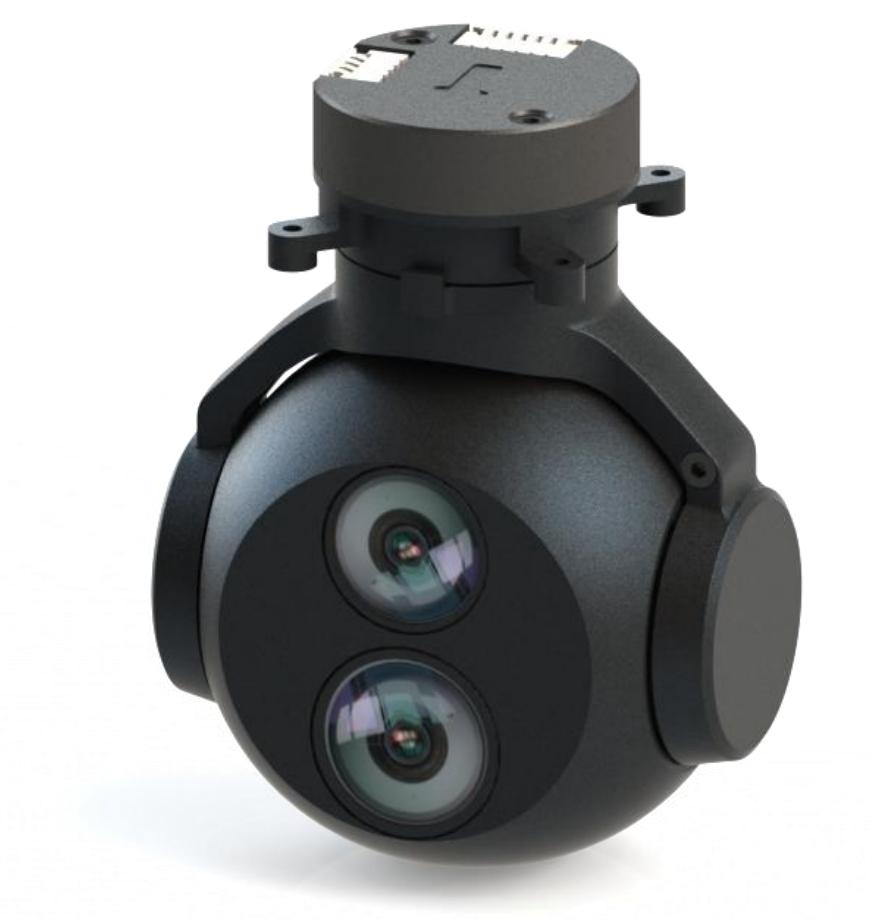

Platform type： Two-axial Pitch：-110°～+110° Roll： -100°～+40 Weight：85g Electro-Optic（large） Resolution：1920×1080@60fps FOV： 49.8°×29.3° (6mm) Electro-Optic（small） Resolution： 1920×1080@60fps FOV： 19.7°×11° (16mm) Control interface： serial port Video output：network(Rtsp)
Platform type： Two-axial Pitch：-110°～+110° Roll： -100°～+40 Weight：85g Electro-Optic（large） Resolution：1920×1080@60fps FOV： 19.7°×11° (16mm) Laser ranging Measuring range 5-1200m Control interface： serial port Video output：network(Rtsp)
Platform type： Two-axial Pitch：-110°～+110° Roll： -100°～+30° Weight：240g Electro-Optic（large） Resolution：1920×1080@60fps FOV： 42.2°×24.5° (7.2mm) Electro-Optic（small） Resolution： 1920×1080@60fps FOV： 12.7°×7.1° (25mm) Control interface： RS232 Video output：network
Platform type： Two-axial Pitch：-90°～+90° Roll： -90°～+30° Weight：250g Electro-Optic（large） Resolution：1920×1080@60fps FOV： 82°×52° (3.2mm) Electro-Optic（small） Resolution： 1920×1080@60fps FOV： 20°×11° (16mm) Thermal IR Resolution： 640×512@60fps FOV： 12.5°×10° (35mm) Control interface： RS232/422 Video output：network
Platform type： Two-axial Pitch：-90°～+90° Roll： -90°～+30° Weight：260g Electro-Optic Resolution：1920×1080@60fps FOV： 38°×22° (8mm) Laser ranging Measuring：5-600m Control interface： RS232/422 Video output：network
Platform type： Tri-axial Yaw：-150°～+150° Pitch： -90°～+30° Roll: -45°～+45° Weight：120g Electro-Optic (Large) Resolution：3840×2160 FOV： 83°×53° Electro-Optic (small) Resolution：3840×2160 FOV： 20°×11° Control interface： RS232 Video output：UDP/RTSP
Locking distance Car:800m Locking distance Human:400m Focus length:6mm Resolution:2560x1440 FOV (field of view):66°x40° Min. Target track pixel：5*5 pixels PAL(output) Core Weight:37g Lens Weight:8g Frame rate:60Hz Support protocol:CRSF/Sbus/MavLinkv2 Support flight control software:BetaFlight/INVA/APM/PX4
Locking distance Car: 800m(EO)/500m(IR) Locking distance Human: 400m(EO)/200m(IR) Focus length: 6mm(EO)/13mm(IR) Resolution:2560x1440(EO)/640x512(IR) FOV (field of view):66°x40°(EO)/32°x25°(IR) Min. Target track pixel：5*5 pixels PAL(output) Core Weight:37g Lens Weight:12g Frame rate:60Hz Support protocol:CRSF/Sbus/MavLinkv2 Support flight control software:BetaFlight/INVA/APM/PX4
Locking distance Car: 300m Locking distance Human: 200m Focus length: 6mm Resolution:720x576 FOV (field of view):36°x29° Min. Target track pixel：5*5 pixels PAL(output and input) Core Weight:37g Frame rate:50Hz Support protocol:CRSF/Sbus/MavLinkv2 Support flight control software:BetaFlight/INVA/APM/PX4
.png)

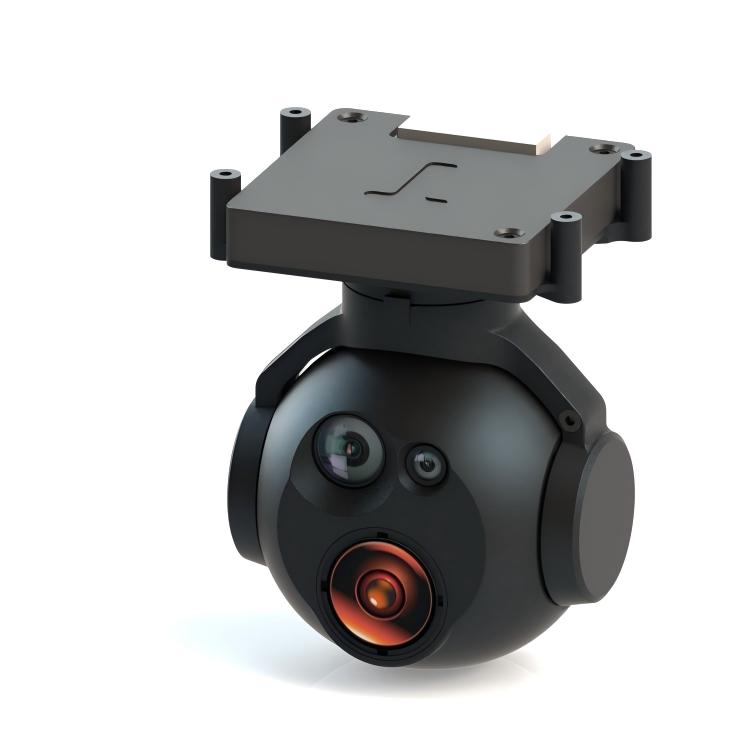

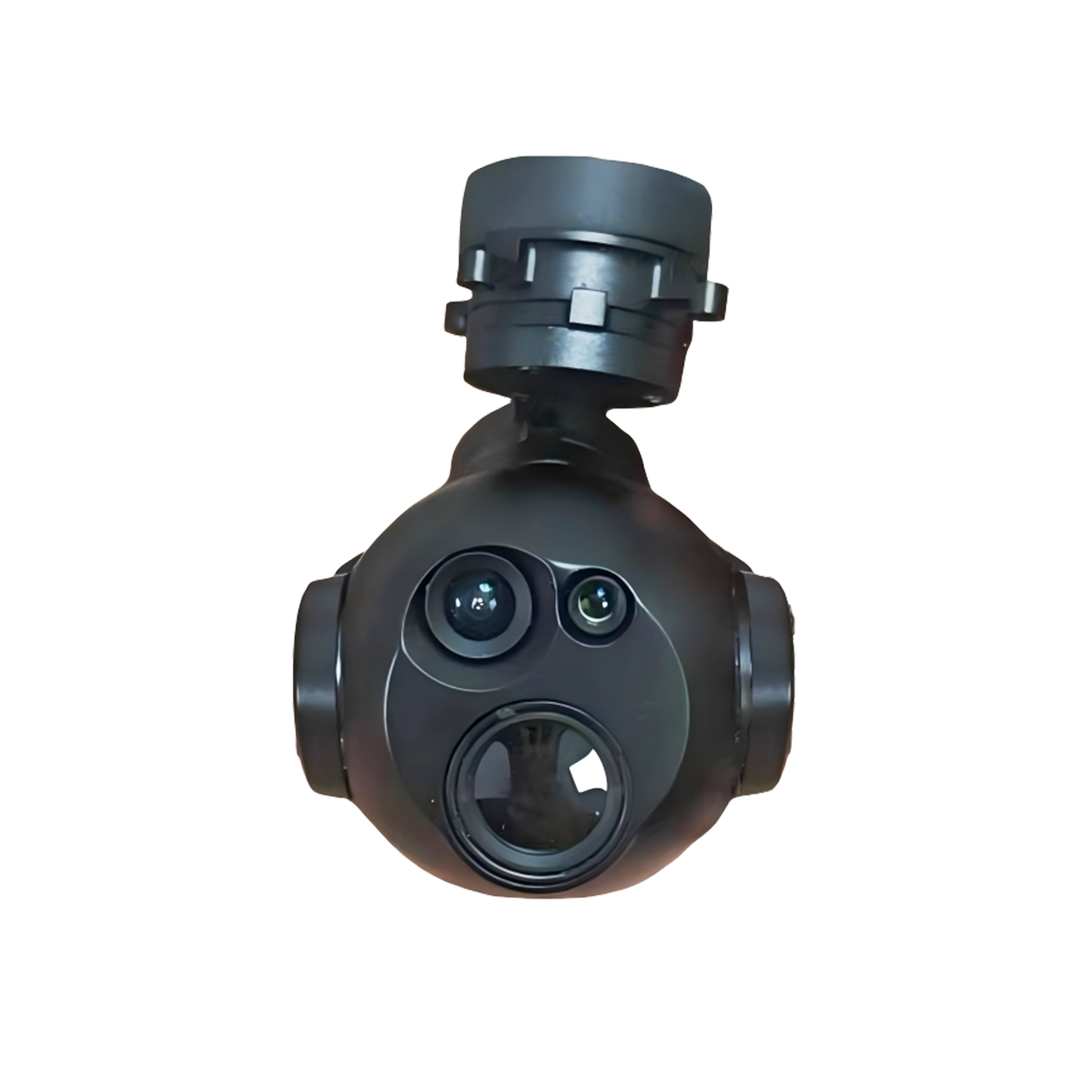

Platform type: Two-axial Yaw: -60°～+60° Pitch: -90°～+30° Electro-Optic Resolution: 3840×2160 @30fps FOV (large): 83°×53°(3.2mm) FOV (small): 20°×11°(16mm) Thermal IR Resolution: 640×512@30fps FOV: 22.9°×18.4°(19mm) Laser Ranging Measuring range 1200m Control interface: RS232/TTL Video output: Network
.jpg)

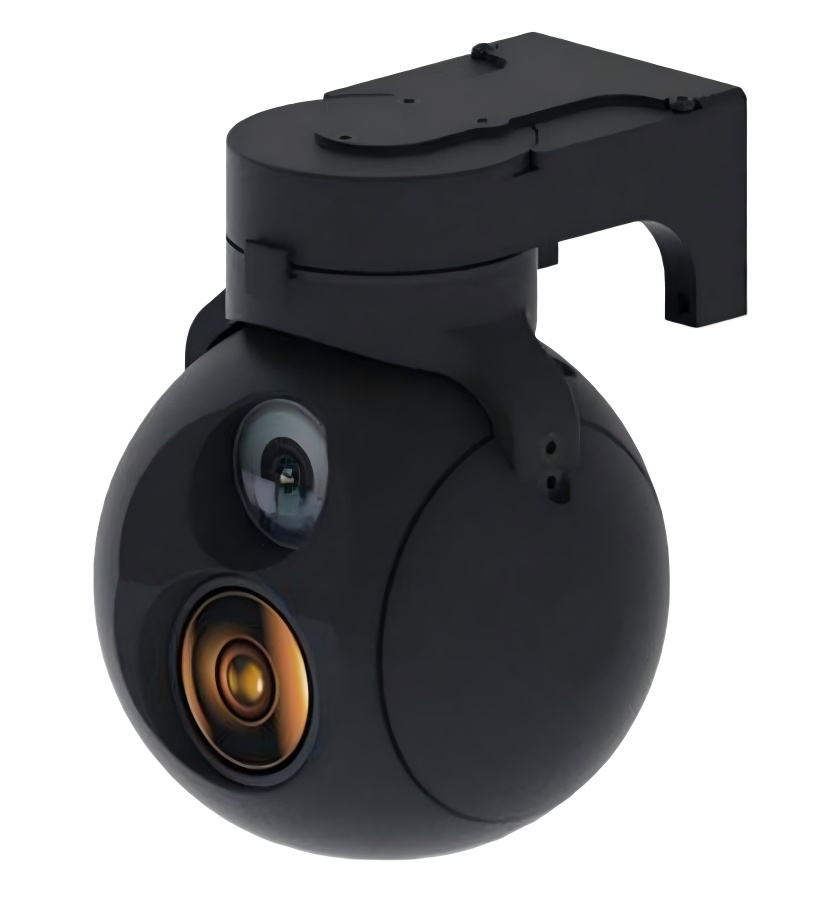

Platform type: Two-axial Yaw: -110°～+110° Pitch: -100°～+40° Electro-Optic Resolution: 3840×2160 FOV (large): 83°×53°(3.2mm) FOV (small): 20°×11°(16mm) Thermal IR Resolution: 640×512 FOV: 32.9°×26.6°(13mm) Control interface: TTL Video output: Network

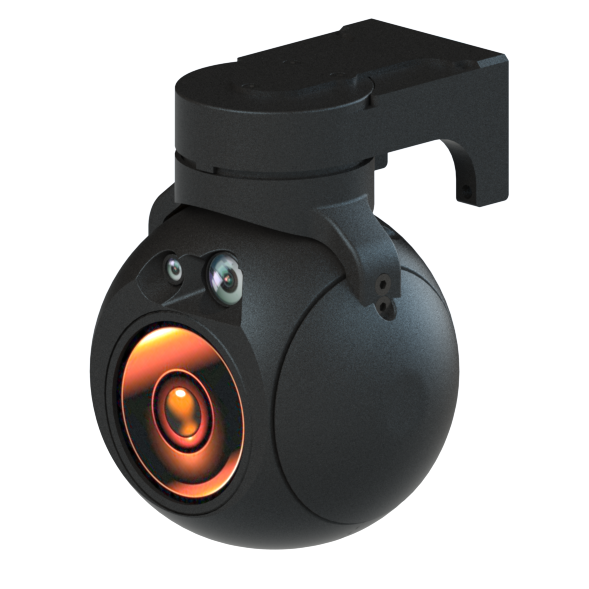

Platform type： Two-axial Pitch：-120°～+120° Roll： -90°～+30 Weight：550g Electro-Optic（large） Resolution：1920×1080@60fps FOV： 42°×24.5° (7.2mm) Electro-Optic（small） Resolution： 1920×1080@60fps FOV： 6.3°×3.5° (50mm) Thermal IR Resolution：640×512@60fps FOV： 8.8°×6.6° (50mm) Laser rangefinder Range: 30-3000m Control interface：232(422) Video output：network
Platform type： Triple-axial Pitch：-100°～+100° Roll： -45°～+45° Weight：450g Electro-Optic（large） Resolution：1920×1080@60fps FOV： 61.3°X36.9°~6.8°X3.9° Thermal IR Resolution：640×512@60fps FOV： 18.1°×14.5° (50mm) Laser rangefinder Measuraing distance: 1km Control interface：RS232/TCP Video output：network
Weight：less than 100g Electro-Optic（large） Resolution：1920×1080@60fps FOV： 38.3°X22.1° (8mm) Thermal IR Resolution：640×512@60fps FOV： 24°×18.1° (18mm) Tracking speed: 48 pixels/frame Control interface：TTL Video output：network Working temp.:-40℃～+60℃ Storage temp.:-40℃～+60℃
Electro-Optic（large） Resolution：1920×1080@30fps FOV： 98.5°X66.3° (2.4mm) Electro-Optic（small） Resolution：1920×1080@30fps FOV： 30°X17.1° (10.36mm) Tracking speed: 32 pixels/frame(human) 48 pixels/frame(vehicle) Control interface：TTL Video output：network RTSP Working temp.:-20℃～+60℃ Storage temp.:-20℃～+60℃
.png)
Electro-Optic（large） Resolution：3840×2160 FOV： 83°X53° Electro-Optic（small） Resolution：840×2160 FOV： 20°X11° Tracking speed: 32 pixels/frame Control interface：TTL Video output：network Working temp.:-20℃～+60℃ Storage temp.:-20℃～+60℃

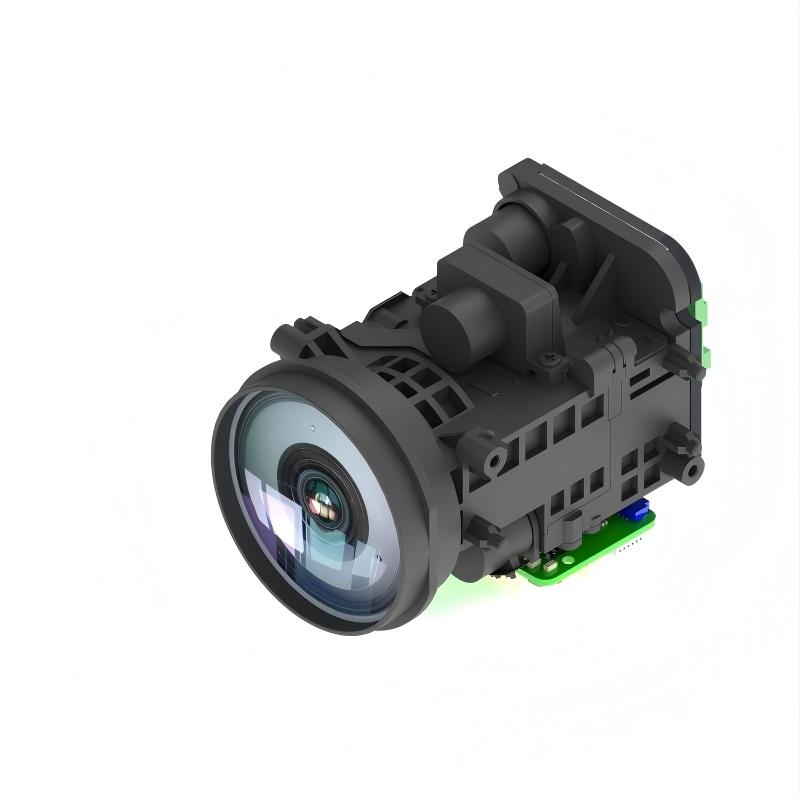

Weight: Less than 110g Optical zoom:10x Digital zoom: 3x Electro-Optic（large） Resolution：3840×2160 FOV：63°*38° to 7°*4° Focal length: 4.7mm~47mm Target size:16x16～128x128 pixel Tracking speed: 32 pixels/frame Data refresh rate: 60Hz Control interface：TTL Video output：network

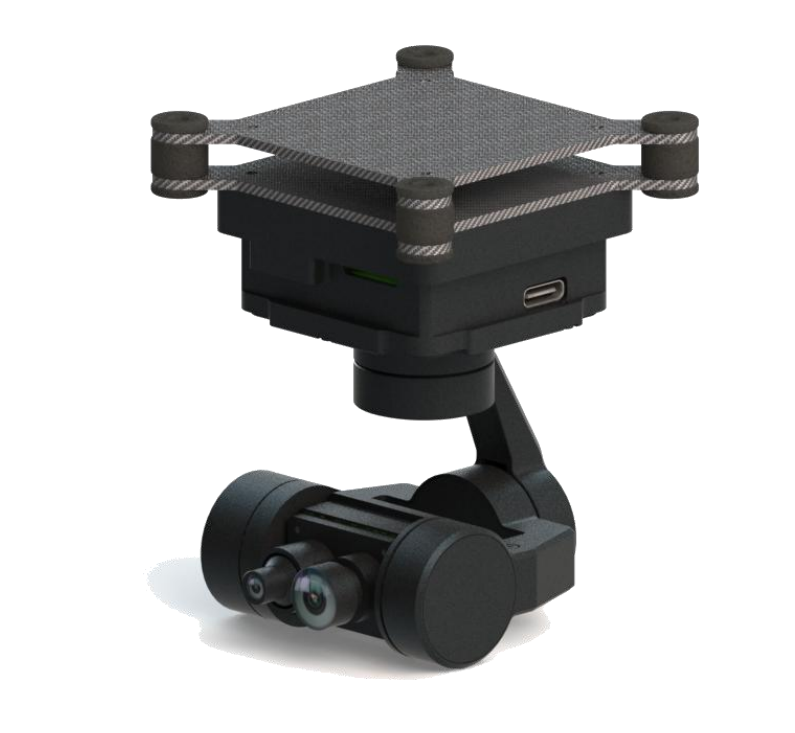

Weight: Less than 280g Platform type:Two-axial Pitch: -110°～+110° Roll: -100°～+30° Electro-Optic（8mm） Resolution：1920×1080 @60fps FOV：38.3°×22.1° Thermal IR (18mm) Resolution: 640×512@60fps FOV: 24°×18.1° Control interface：RS232 Video output：network Working temp.:-40℃～+60℃ Storage temp.:-40℃～+60℃
Locking distance Car:1400m Locking distance Human:600m Focus length:3.2mm EO1;10.3mm EO2 Resolution:1920x1080 FOV (field of view):82°x52°EO1; 30°x17°EO2° Min. Target track pixel：5*5 pixels Module Weight:37g Camera Weight:12g Frame rate:60Hz Support protocol:CRSF/Sbus/MavLinkv2 Support flight control software:BetaFlight/INAV/APM/PX4
Locking distance Vehicle:1400m EO; 500m IR Locking distance Human:600m EO;200m IR Focus length:3.2mm EO1;10.3mm EO2;13mm IR Min. Target track pixel：5*5 pixels PAL(output) Core Weight:37g Lens Weight:16g Frame rate:60Hz Support protocol:CRSF/Sbus/MavLinkv2 Support flight control software:BetaFlight/INVA/APM/PX4
Locking distance Vehicle:800m EO; 500m IR Locking distance Human:400m EO;200m IR Focus length:6mm EO;13mm IR Min. Target track pixel：5*5 pixels PAL(output) Core Weight:37g Lens Weight:12g Frame rate:60Hz Support protocol:CRSF/Sbus/MavLinkv2 Support flight control software:BetaFlight/INVA/APM/PX4
Locking distance Car: 1400m Locking distance Human: 600m Focal length: 3.2mm EO1; 10.3mm EO2 Resolution: 1920x1080 FOV (field of view): 82°x52°EO1; 30°x17°EO2° Min. Target track pixel： 5*5 pixels Module Weight: 37g Camera Weight: 12g Frame rate: 60Hz Supported protocol: CRSF/Sbus/MavLinkv2 Supported flight control software: BetaFlight/INAV/APM/PX4

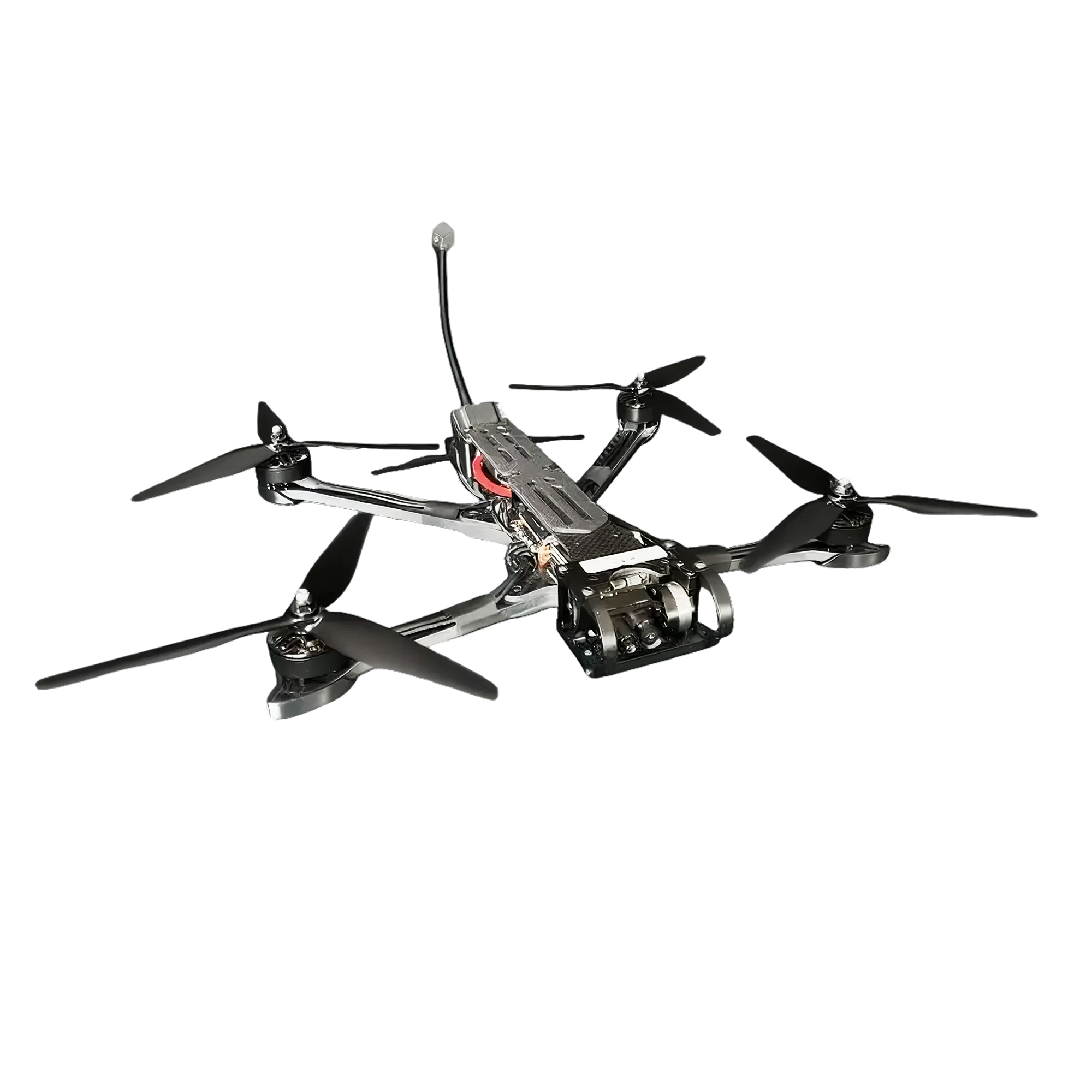

1.Intelligent tracking 2.High speed cruising 3.Precise guidance 4.Easy operation

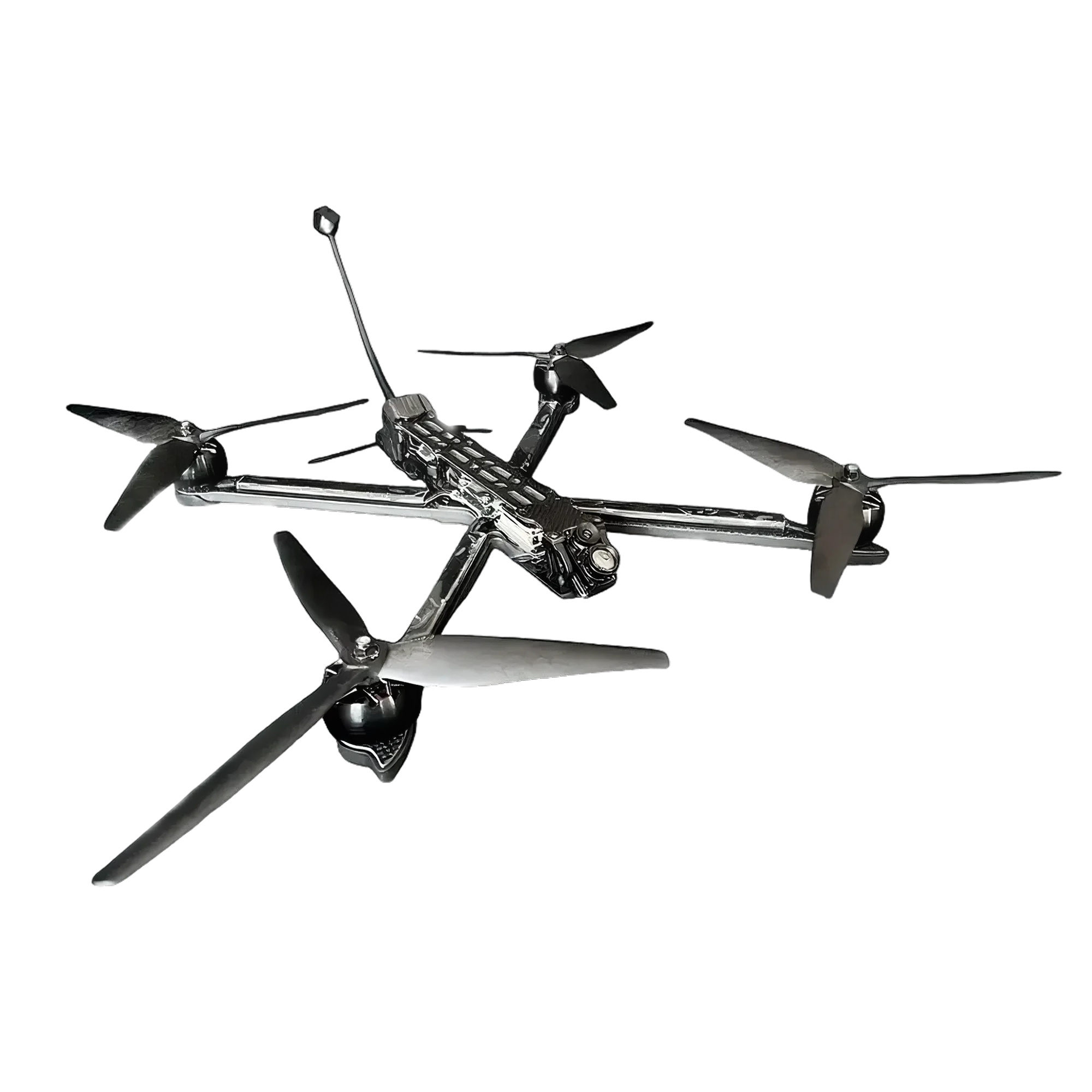

Air to air FPV model. 1.Intelligent tracking 2.High speed cruising 3.Precise guidance 4.Easy operation
Platform type： Three-axial Electro-Optic（large） Resolution：1920×1080@60fps FOV： 82°×52° (3.2mm) Electro-Optic（small） Resolution： 1920×1080@60fps FOV： 19.7°×11° (16mm) Thermal IR Resolution：640×512@50fps FOV： 32.9°×26.6° (13mm) Control interface： serial port Video output：network(Rtsp)

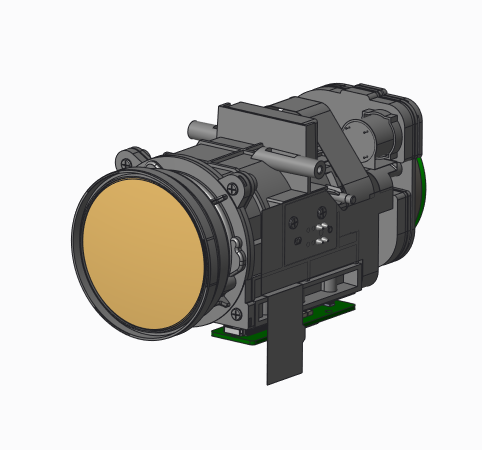

Weight: Less than 160g Optical zoom:30x Digital zoom: 3x Electro-Optic（large） Resolution：1920×1080 FOV：65.9°*40° to 2.5°*1.4° Focal length: 4.3mm~129mm Target size:16x16～128x128 pixel Tracking speed: 32 pixels/frame Data refresh rate: 60Hz Control interface：TTL Video output：network
